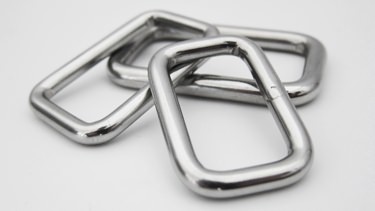

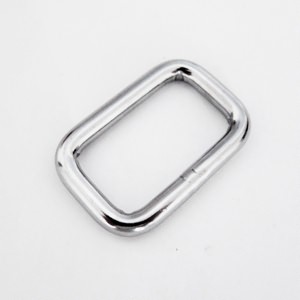

Welded Square Ring

- Item Number: 603
- Size: 3mm-6mm
- Material: AISI304 / AISI316
- Product Description: Welded square ring is widely used for marine, sports, climbing, architectural, industrial, security... The surface has been grinding treated, weld marks are not obvious.
Product Specifications
| Size | ΦS | A | B |
|---|---|---|---|
| mm | mm | mm | mm |
| 3×15 | 3 | 15 | 9 |
| 4×15 | 4 | 15 | 9 |
| 4×20 | 4 | 20 | 12 |
| 5×20 | 5 | 20 | 12 |
| 5×25 | 5 | 25 | 15 |
| 5×30 | 5 | 30 | 18 |
| 5×40 | 5 | 40 | 21 |
| 6×40 | 6 | 40 | 21 |
| 6×50 | 6 | 50 | 25 |
