NOTE

※ Please be aware that there may be deviation and tolerance in noted measurements.

※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.

※ Specifications may change without prior notification.

※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.

※ Please do not copy and reproduce the contents of our website without any express permission.

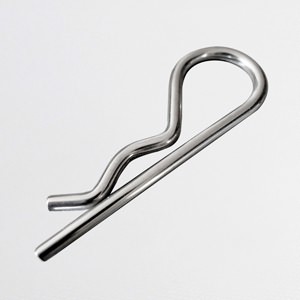

Spring Cotter R-Pin

Spring Cotter R-Pin
  • Item Number: 606
  • Size: 2mm-6mm
  • Material: AISI304 / AISI316
  • Product Description: Spring cotter R-pin also known as R-pin, R-key, hairpin, commonly used to secure the ends of round shafts such as axles and clevis pins.
Product Specifications
Spring Cotter R-Pin Drawing
Size(Φd) D B L L1
mm mm mm mm mm
2.0 8-10 10 40 25
2.5 10-16 11 46 24
3.0 16-18 16 60 34
4.0 18-20 19 64 36
5.0 20-28 26 82 45
6.0 28-40 30 110 56
