Oblique Angle Snap Hook

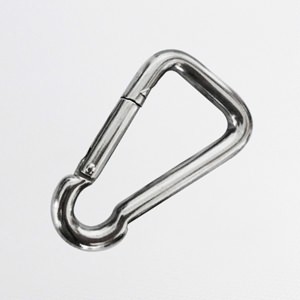

Oblique Angle Snap Hook
  • Item Number: 407
  • Size: 5mm-11mm
  • Material: AISI304 / AISI316
  • Product Description: Oblique angle snap hook is widely used for marine, sports, climbing, architectural, industrial, security... Actually, it's the best tool for quick connecting.
Product Specifications
Oblique Angle Snap Hook Drawing
Size(ΦA) C D F BL WT
mm mm mm mm kg kg
5 50 8 9 240 0.015
6 60 9 10 240 0.028
8 80 12 13 450 0.060
10 100 15 18 650 0.130
11 120 15 24 850 0.190
