Lifting Eye Bolt DIN580

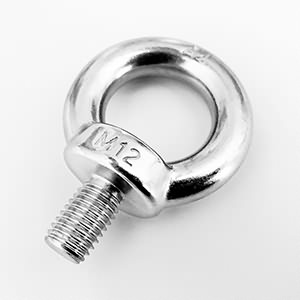

Lifting Eye Bolt DIN580
  • Item Number: 501
  • Size: M6-M36
  • Material: AISI304 / AISI316
  • Product Description: Lifting eye bolt DIN580 is the most widely used kind of rigging hardware and specifically suited for lifting some heavy objects like machine, furniture, electric motor, metal mold, distribution panel, appliance...
Product Specifications
Lifting Eye Bolt DIN580 Drawing

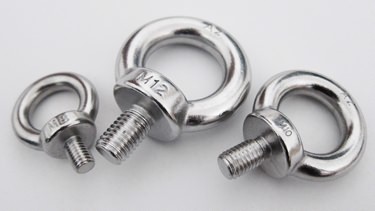

Lifting Eye Bolt DIN580 Detail
d1 d2 d3 d4 h e l ΦD BL WT Price
mm mm mm mm mm mm mm mm kg kg SS304 SS316
M6 16 28 17 30 8 12 6 1300 0.024 $0.43 $0.60
M8 20 35 20 35 8 12 7.5 2400 0.043 $0.44 $0.62
M10 25 45 25 44 10 16 10 4000 0.093 $0.77 $1.08
M12 29 53 30 52 11 20 12 5400 0.155 $1.33 $1.86
M14 29 53 30 52 11 20 12 - 0.158 $1.62 $2.27
M16 34 61 35 60 13 25 14 9000 0.260 $2.14 $3.00
M18 37 67 37 66 17 34 15 - 0.371 $2.80 $3.92
M20 40 72 40 71 16 30 16 13000 0.417 $3.17 $4.44
M24 47 87 48 87 19 40 20 18000 0.733 $5.59 $7.83
M30 54 104 54 105 30 45 24 26000 1.400 $10.80 $15.20
M36 75 126 70 126 30 54 28 - 2.600 $22.10 $31.00
