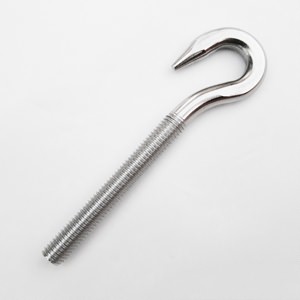

Hook Bolt

Hook Bolt
  • Item Number: 519
  • Size: M4-M20 3/16-1/2
  • Material: AISI304 / AISI316
  • Product Description: Hook bolt could be used as an adjuster to install or replacement links. It also colud be used as a turnbuckle end.
Product Specifications
US Type Wire Rope Clip Drawing
Size(A) H L S WT
mm/inch mm mm mm kg
M4 51 30 5 0.005
M5 60 36 7 0.010
M6 74 46 8 0.017
M8 98 61 9 0.039
M10 120 74 13 0.076
M12 154 100 16 0.138
M16 195 125 23 0.330
M20 220 135 25 0.579
W3/16 50 28 6 0.009
W1/4 75 45 9 0.018
W5/16 100 60 10 0.044
W3/8 120 75 13 0.076
W1/2 156 100 17 0.150
