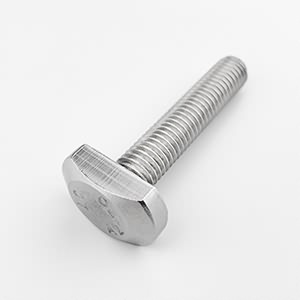

Hammer Head Screws GB37

Hammer Head Screws GB37
  • Item Number: 550
  • Size: M5-M12
  • Material: AISI304 / AISI316
  • Product Description: Hammer head screws GB37 can be directly put into the groove of the aluminum profile, and they can be positioned and locked automatically during the installation process. They are often used in conjunction with flange nuts and are the standard matching connectors when installing corner fittings.
Product Specifications
Hammer Head Screws GB37 Drawing
Size(A) B C T L
mm mm mm mm mm
M5 12 9 4 12-40
M6 16 12 5 8-55
M8 20 14 6 16-70
M10 25 18 7 20-60
M12 30 22 8.5 25-70
