Eye Hook

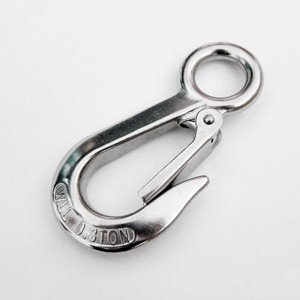

Eye Hook
  • Item Number: 412
  • Size: 19mm-28mm
  • Material: AISI304 / AISI316
  • Product Description: Stainless steel chain grab eye hook is used for light lifting application, especially for taking chain load or for silencing noisy anchor chain whilst at anchor.
Product Specifications
Eye Hook Drawing

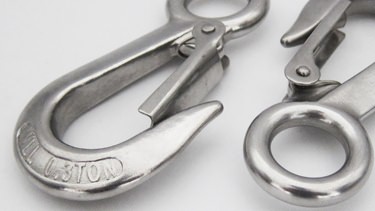

Eye Hook Detail
Size(D) B L F BL WT
mm mm mm mm kg kg
19 47 100 15 750 0.115
28 53 120 18 1000 0.170
