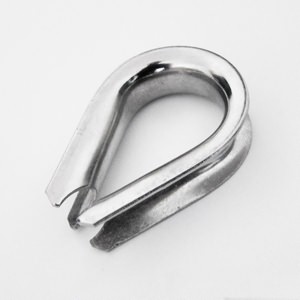

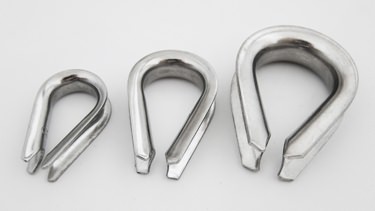

European Wire Rope Thimble

Item Number: 109
Size: 2mm-32mm
Material: AISI304 / AISI316
Product Description: European wire rope thimble is the most widely used kind of wire rope thimble because of its reasonable design and lower price. Usually we have a large inventory of them. Please choose the corresponding specifications according to the diameter of the wire rope.

Product Specifications

Rope(ΦA)	B	C	H	S	L	WT	Price
mm	mm	mm	mm	mm	mm	kg	SS304	SS316
2	14	7	11.5	0.8	20	0.001	$0.05	$0.07
3	16	10	16	0.8	23	0.002	$0.06	$0.08
4	18	11	17	1	25	0.003	$0.06	$0.09
5	22	12.5	20	1	32	0.005	$0.08	$0.11
6	25	14	22	1	37	0.007	$0.09	$0.13
8	34	18	29	1.5	48	0.017	$0.15	$0.21
10	43	24	37	1.5	56	0.026	$0.22	$0.30
12	48	27.5	42	1.5	67	0.040	$0.30	$0.41
14	50	33	50	2	72	0.060	$0.42	$0.58
16	64	38	55	2	85	0.079	$0.62	$0.86
18	68	41	61	2.5	93	0.124	$0.89	$1.24
20	72	43	65	2.5	101	0.143	$1.10	$1.54
22	77	43	67	2.5	106	0.172	$1.25	$1.75
24	77	49	73	2.5	110	0.198	$1.40	$1.96
26	80	53	80	3	120	0.275	$2.21	$3.09
28	90	55	85	3	130	0.330	$2.65	$3.71
32	94	62	90	3	134	0.370	$2.94	$4.12
