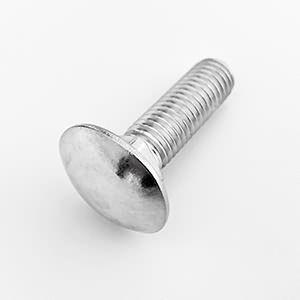

Cup Square Neck Bolts DIN603
- Item Number: 543
- Size: M5-M12
- Material: AISI304 / AISI316
- Product Description: Cup square neck bolts DIN603 can be placed through a square hole in metal strap or wood, this make lock nut installed with a single tool, a spanner or wrench from another side.
| Size(A) | C | ΦD | K | T | L |
|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm |
| M5 | 5.2 | 13 | 3.5 | 3 | 10-50 |
| M6 | 6.2 | 16 | 4 | 3.5 | 12-60 |
| M8 | 8.3 | 20 | 5 | 4.5 | 16-80 |
| M10 | 10.3 | 24 | 6 | 5 | 20-100 |
| M12 | 12.4 | 30 | 8 | 6.5 | 20-100 |
-
