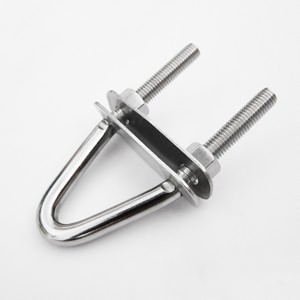

A Bolt With Nuts And Plates

A Bolt With Nuts And Plates
  • Item Number: 508
  • Size: M8-M10
  • Material: AISI304 / AISI316
  • Product Description: A bolt with nuts and plates is commonly used as deck hardware for yachts and sailing boats in highly corrosive marine environments.
Product Specifications
A Bolt With Nuts And Plates Drawing
Size(D) A B H L W WT
mm mm mm mm mm mm kg
M8 40 100 50 42 0.125
M8 40 100 50 42 0.125
M8 18° 40 100 50 42 0.125
M10 48 120 60 50 0.150
M10 48 120 60 50 0.150
M10 18° 48 120 60 50 0.150
